Plant Design
Plant Design
Are you planning to build a new factory, extend an existing factory and lines, or switching production items? JUKI provides a service to help customers build optimized lines by estimating production facilities, target production quantity, and the required number of operators. Take advantage of JUKI's plant design service to build your optimized lines.
Case Studies
Case Study 1: Estimate according to the target items and production status

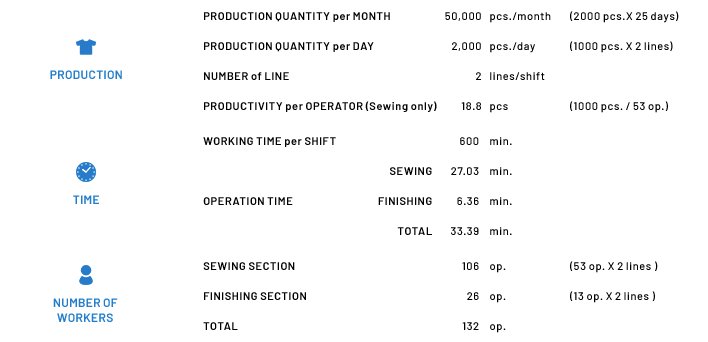

Estimates below are available according to the customer's target items and production status:.

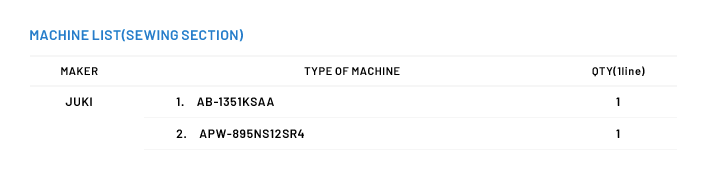

The list contains the production facilities optimized for the customer's production items. The required number of sewing machines are calculated from the target production quality per day or the number of operators to hire.

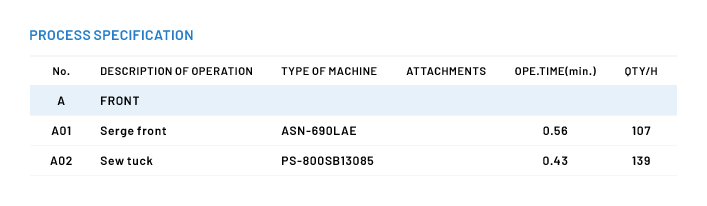

Calculated items include required facilities, attachments, process time, and daily output in all processes required to manufacture the customer's production items

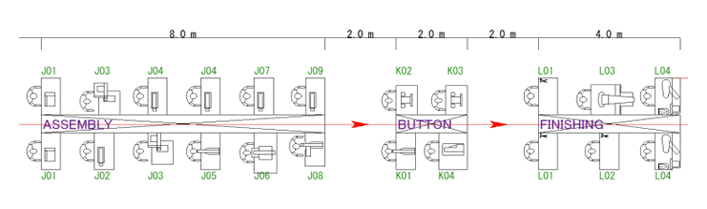

Based on the facilities estimated above, the diagram shows the facility layout. It can be used to determine if the site can hold the facilities by estimating the factory/line areas.
Case Study 2: Estimate based on the actual production item samples
Please send your production item samples and request an estimate based on the production processes of the items. The estimate is provided in the same manner as described above. For a jacket, for example, the estimate elements includes the label shape, the number of sleeve buttons, vent type, facing shape, presence/absence of lining. By designing the line for the most difficult item among your production items, JUKI can offer a proposal capable of manufacturing other easier items.
